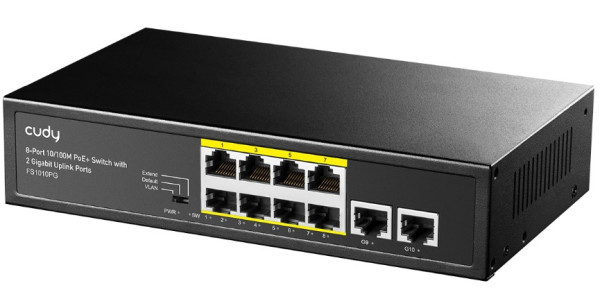

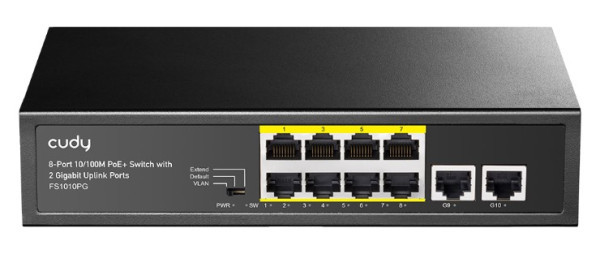

8-Port 10/100M PoE+ Switch with 2 Uplink Ports Support IEEE802.3at and IEEE802.3af Standard 120W PoE power output totally,up to 32W for one PoE port Support IEEE802.3x full duplex and half duplex ?ow control Support VLAN and CCTV Function Panel lights to monitor working state and help fault analysis Perfect security mechanism Line-speed forwarding intelligent identi?cation Specifications Model FS1010PG PoE standard IEEE802.3af/at Interface 10*10/100Mbps The RJ45 port through consultationa Key function CCTV&VLAN PoE port 1~8 port PoE Total 120W Power supply 120W RJ45 PoE power supply Mode A Anode1/2 Cathode3/6 PoE output-port Max 32W Indicator PWR, LNK/ACT, PoE Network media 10BASE-T: UTP category 3, 4, 5 cable(?100m);100BASE-TX: UTP category 5, 5e cable(?100m); MAC Address Table 8K, Automatic study, automatic updates Jumbo frame 1528Bytes Packet buffer 2M bit Transfer Mode Store-and-forward Packet forwarding rate 1.48Mpps Bandwidth 2M bit Fan Fanless Device Dimension 220*150*44mm Machine Weight >1kg Green energy saving Support IEEE(802.3az) Mains Input 100~240V AC, 50/60Hz Operating Temperature 0°C ~ 40 °C Storage Temperature -40 °C ~ 70 °C Operating Humidity 10% ~ 90% non-condensing Storage Humidity 5% ~ 90% non-condensing Surge Protection ±4KV MTBF >50000 hour Electrostatic standard Contact 4KV, air 6KV
