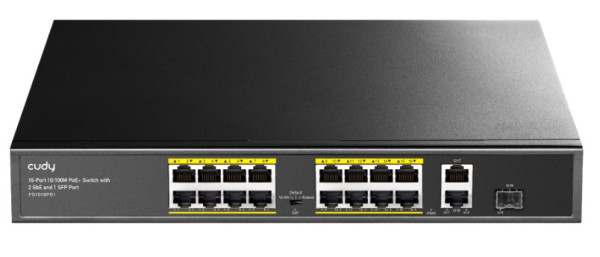

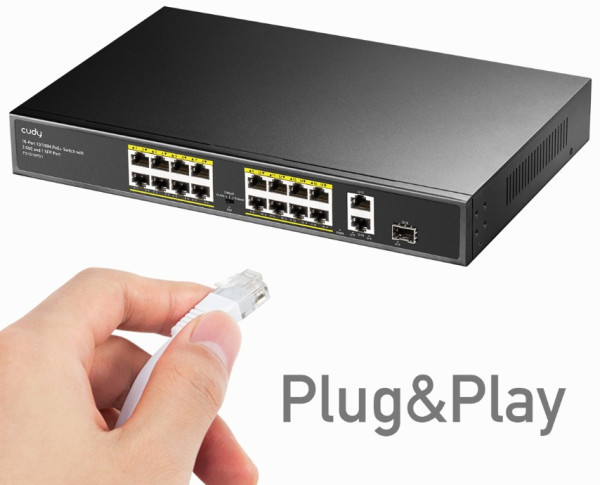

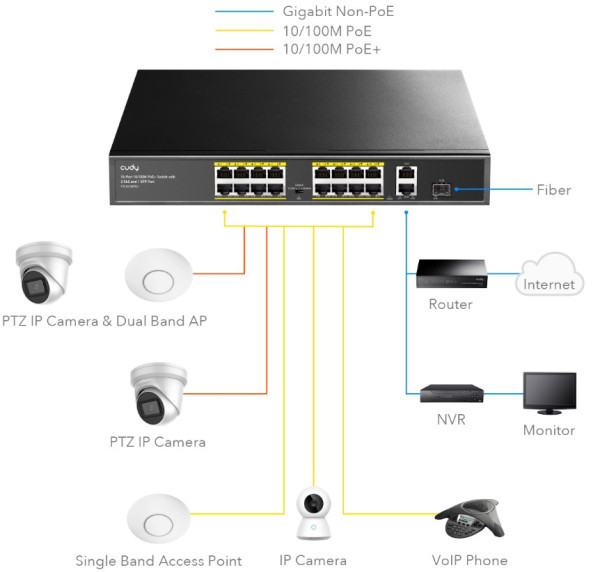

16-Port 10/100M PoE+ Switch with 1 Combo SFP Port 200 watts PoE power supply, up to 30 watts per port 2 10/100/1000M uplink ports +1 SFP Port 16 10/100M PoE+ ports CCTV mode support remote PoE feeding up to 250m VLAN mode isolate each PoE Ports for security IEEE 802.3at / IEEE 802.3af standard compliant Plug&play, simple setup with no configuration needed Watchdog reactivates the abnormalPD by resuming POE power Mode FS1018PS1 Power Power Supply Built-in power supply Voltage Range AC100~240V Consumption 190W for 16 PoE Ethernet Speed 1~16 Port: 10/100/Mbps G1(combo):10/100/1000Mbps & 1.25bps G2:10/100/1000Mbps Transmission Distance 100Meter(328ft)for RJ-45 The distance is determined by the optical module The optical module is optional Network Switch Ethenet Standard IEEE 802.3 802.3u 802.3ab 802.3af/at Switching Capacity 7.2G Transfer Rate 14880 pps for 10Mbps 148800 pps for 100Mbps 1488000 pps for 1000Mbps MAC Adsress 4K MAC sddress table Link/ACT On(Green) The port is connecting Blinks The port is receiving or transmitting data. Off The port is notl inked successfully with the device POE On(Oranfe) PD is connected Off No PD is connected or power forwarding fails PoE Pin Assignmnet V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6) Environment Working Temperature 0~40°C Storage Temperature -40~70°C Humidity Non Condesing 0~85% Mechanical Dimension L*W*H 280*180*44mm Color Gray
