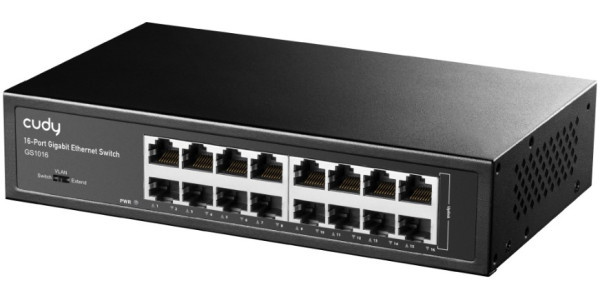

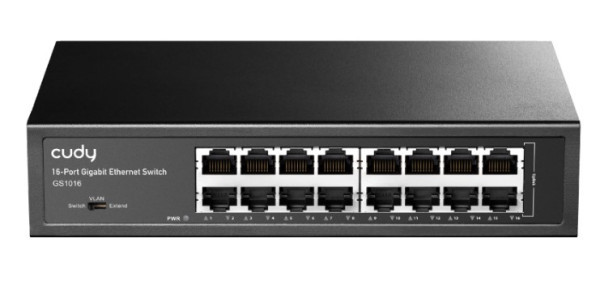

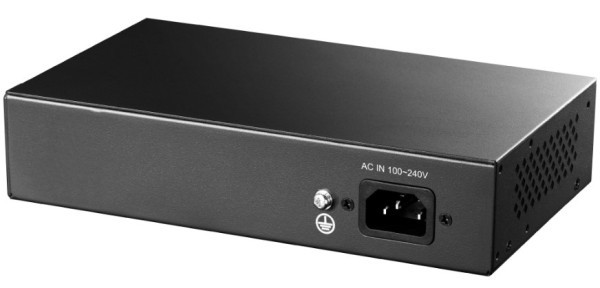

16-Port Gigabit Switch Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards 16 10/100/1000Mbps Auto Negotiation, Auto MDI/MDIX ports provide smart switching abilities Non-blocking switching architecture enables full wire-speed packets forwarding and filtering Store-and-Forward switching method Supports 8K MAC address auto-learning and auto-aging Specifications Product Name 16-Port Gigabit Ethernet Switch Product Model GS1016 Chipset RTL8382L+RTL8218B-VC-CG+RTL8231 Standards IEEE 802.3i?IEEE 802.3u?IEEE 802.3ab?IEEE 802.3x?IEEE 802.3az Number of Ports 16 x 10/100/1000Mbps Auto-Negotiation ports Network Media (Cable) 10Base-T: UTP category 3,4,5 cable (maximum 100m) 100Base-Tx: UTP category 5,5e cable (maximum 100m) 1000Base-T:UTP category 5e,6 cable (maximum 100m) Transfer Method Store-and-Forward MAC Address Table 8K Switching Capacity 32Gbps Packet Forwarding Rate 23.81Mbps Packet Buffer 4.1 Mbit Jumbo Frame 9216 bytes LED indicators Per-Port 10M/100M Link/ACT:Orange 1000M Link/ACT:Green Per Device Power :Green Power Supply 100-240VAC 50/60Hz Power Consumption Maximum: 10.1W(220V/50Hz) Dimensions ( W x D x H ) 440*140*44mm Environment Operating Temperature: 0? ~ 40c Storage Temperature: -40? ~70c Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing
