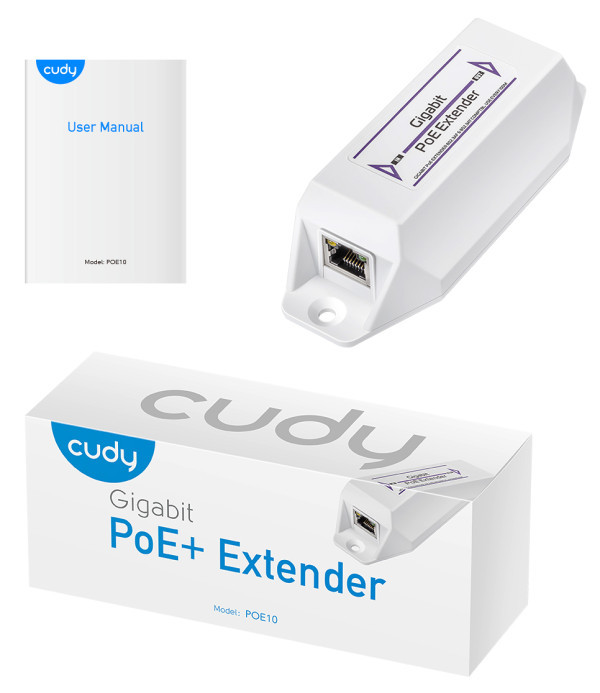

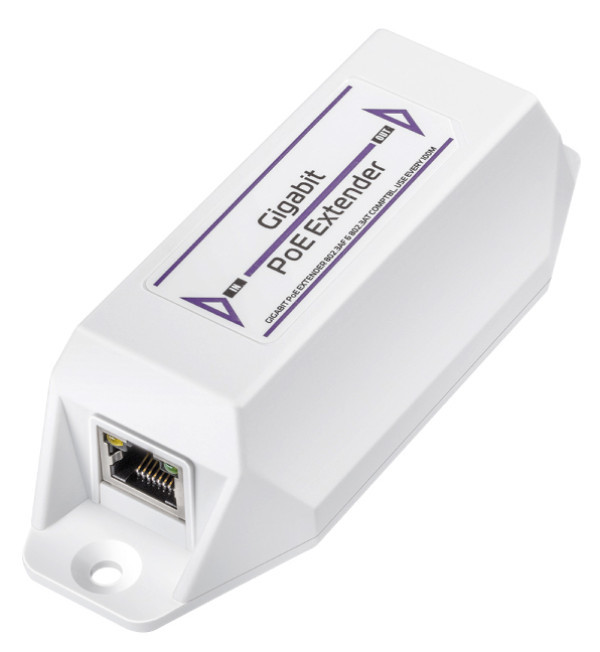

Cudy POE10 30W Gigabit PoE+/PoE Injector, 802.3at/802.3af Standard, Data and Power 100 Meters
- Proizvod iz grupe: Switch uredjaji
- Proizvođač: Cudy

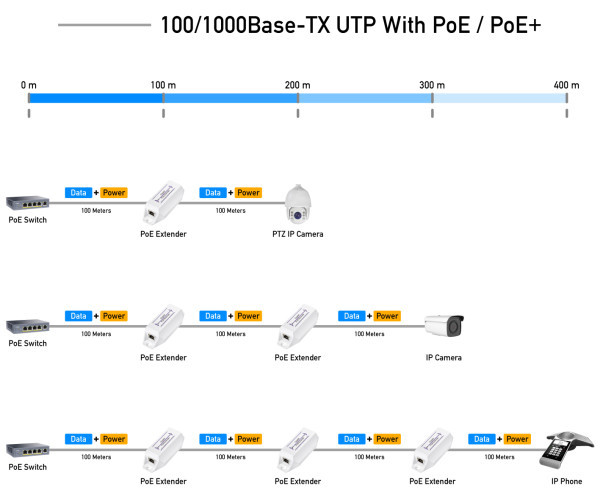

Power over Ethernet Extender, Model: POE10 Kompatibilan sa IEEE802.3af i IEEE802.3at, Proširuje domet PoE i Ethernet-a za dodatnih 100 metara, Nije potrebno dodatno napajanje, Automatski otkriva i štiti PoE opremu od postojanja oštec´eni pogrešnom instalacijom, Mreža pune brzine na celoj produženoj udaljenosti, Kompaktna veličina, dizajn za montažu na zid, Jednostavna plug-and-play instalacija, EMI standardi su u skladu sa FCC, CE klasom B Product Name:POE10 No. of channels: 1 Pass Through Data Rates: 10/100/1000 Mbps half/full duplex Power over Ethernet input: Pin Assignment and Polarity:Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) Power over Ethernet Output: Pin Assignment and Polarity:1/2 (+), 3/6 (-)Output Power: up to 25W Indicators: LED indicators are located on the RJ45 connectorPower indicator: PoE enabledNetwork indicator: Link/Act Connectors: Shielded RJ-45, EIA 568A and 568B Network cables: Shielded category 5 (or higher) Dimensions: 145mm x 60mm x 40mm Mounting: Wall of shelf Environment: Indoor or Outdoor Environmental Conditions: •Operating Ambient Temperature:-10 to 45?, Operating Humidity:Maximum 90%, Non-condensing, •Storage Temperature:-20 to 60? •Storage Humidity: •Maximum 95%, Non-condensing Regulatory Compliance: IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
