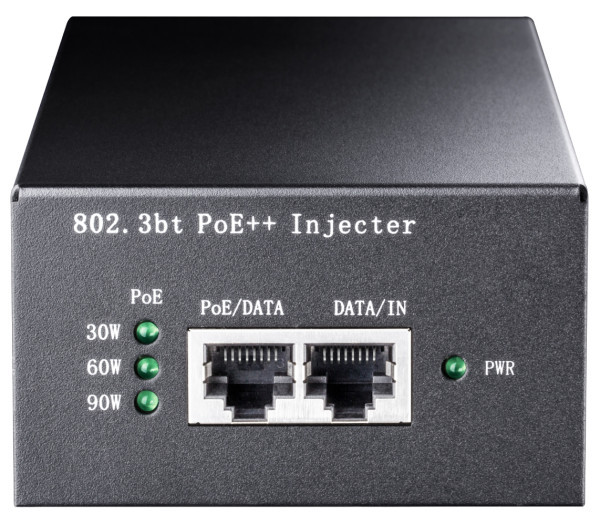

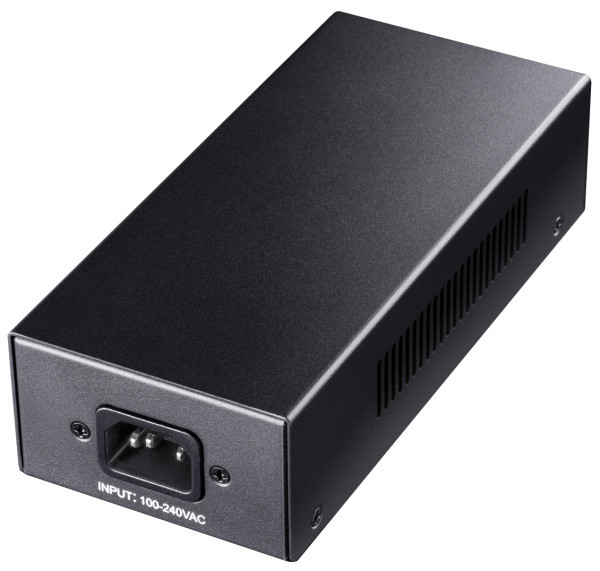

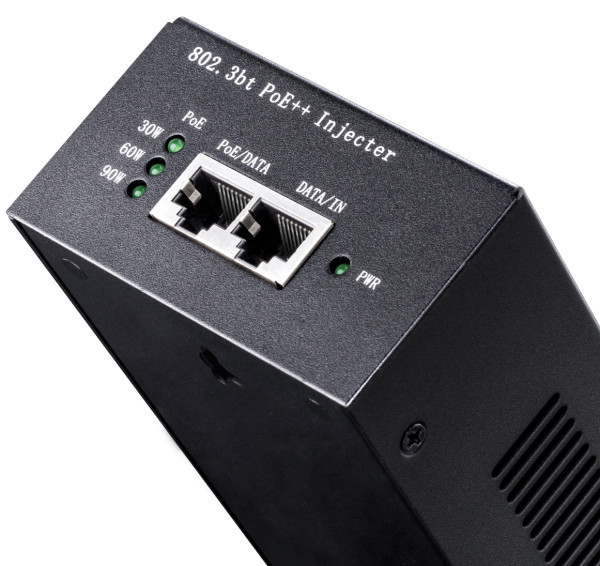

Cudy POE400 90W Gigabit PoE/PoE+/PoE++ Extender, 802.3af/802.3at/802,3bt Standard, Data Power 100m
- Proizvod iz grupe: Switch uredjaji
- Proizvođač: Cudy

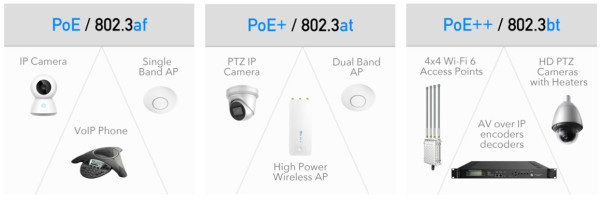

90W Gigabit PoE/PoE+/PoE++ Injector, Model: POE400 Kompatibilan IEEE 802.3af IEEE 802.3at, IEEE802.3bt, Do 90W snage na 4 parica, Automatsko otkrivanje POE IEEE 802.3af IEEE 802.3at, IEEE802.3bt opreme, Podržava 10/100/1000Base-T, LED indikatori: indikacija ulaznog napajanja, Udaljenost do 100 metara Interni AC/DC pretvarač – nema potrebe za eksternim modulima napajanja Jednostavna plug-and-play instalacija, Zaštita od prenapona. Model: POE400 No. of channels: 1 Pass Through Data Ratesi: 10/100/1000Mbps Power over Ethernet Output: Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),, Output Power Voltage: 56Vdc , User Port Power: 90W. Input Power Requirements: AC Input Voltage: 100 to 240 VAC, AC Input Current: 1A 100-240 VAC, AC Frequency: 50 to 60 Hz. Dimensions: 178.5mm x 80mm x 46mm Indicators: System Indicator: AC Power User Indicator: Channel Power Connectors: Shielded RJ-45, EIA 568A and 568B Protection: Over current protection, Over load protection, Over voltage protection, Anti-interference protection. Regulatory Compliance: IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE802.3bt (90W). Environmental Conditions: Operating Ambient Temperature:0 to 45C Operating Humidity:Maximum 80% Non-condensing Storage Temperature:-20 to 70C Storage Humidity:Maximum 80%, Non-condensing.
90W Gigabit PoE/PoE+/PoE++ Injector, Model: POE400 Kompatibilan IEEE 802.3af IEEE 802.3at, IEEE802.3bt, Do 90W snage na 4 parica, Automatsko otkrivanje POE IEEE 802.3af IEEE 802.3at, IEEE802.3bt opreme, Podržava 10/100/1000Base-T, LED indikatori: indikacija ulaznog napajanja, Udaljenost do 100 metara Interni AC/DC pretvarač – nema potrebe za eksternim modulima napajanja Jednostavna plug-and-play instalacija, Zaštita od prenapona. Model: POE400 No. of channels: 1 Pass Through Data Ratesi: 10/100/1000Mbps Power over Ethernet Output: Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),, Output Power Voltage: 56Vdc , User Port Power: 90W. Input Power Requirements: AC Input Voltage: 100 to 240 VAC, AC Input Current: 1A 100-240 VAC, AC Frequency: 50 to 60 Hz. Dimensions: 178.5mm x 80mm x 46mm Indicators: System Indicator: AC Power User Indicator: Channel Power Connectors: Shielded RJ-45, EIA 568A and 568B Protection: Over current protection, Over load protection, Over voltage protection, Anti-interference protection. Regulatory Compliance: IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE802.3bt (90W). Environmental Conditions: Operating Ambient Temperature:0 to 45C Operating Humidity:Maximum 80% Non-condensing Storage Temperature:-20 to 70C Storage Humidity:Maximum 80%, Non-condensing.
