P/N

CA-1Q9-00S6WN-00

SERIES

S Series

MODEL

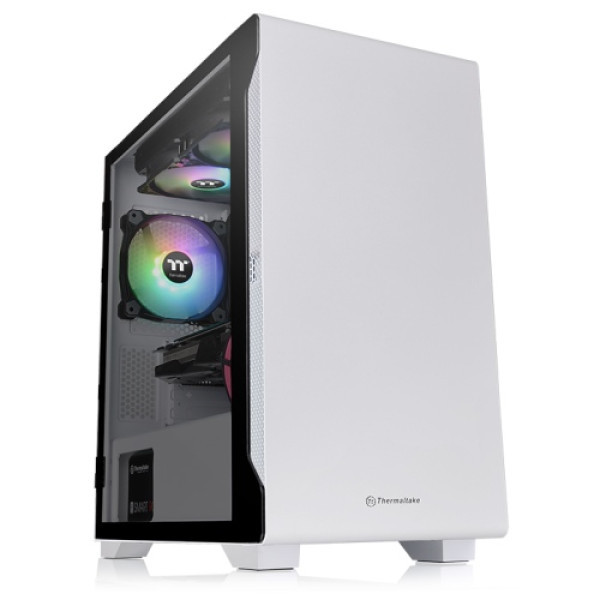

S100 TG Snow

CASE TYPE

Micro Case

DIMENSION (H X W X D)

441 x 220 x 411 mm

(17.36 x 8.66 x 16.18 inch)

NET WEIGHT

6.1 kg / 13.45 lbs.

SIDE PANEL

Tempered Glass x 1

COLOR

Exterior & Interior: White

MATERIAL

SPCC

COOLING SYSTEM

Rear (exhaust) :

120 x 120 x 25 mm fan

(1000rpm, 16 dBA)

DRIVE BAYS

-ACCESSIBLE

-

-HIDDEN

2 x 2.5” (HDD Bracket); 2 x 3.5“ or 2 x 2.5” (HDD Rack);

EXPANSION SLOTS

4

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

I/O PORT

1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio,

PSU

Bez napajanja

FAN SUPPORT

Front:

3 x 120mm, 2 x 140mm

Top:

2 x 120mm, 2 x 140mm, 1 x 200mm

Rear:

1 x 120mm,

RADIATOR SUPPORT

Front:

1x 240mm, 1 x 280mm

Top:

1 x 240mm, 1x 280mm

Rear:

1 x 120mm,

CLEARANCE

CPU cooler height limitation: 165mm

PSU length limitation: 160mm

VGA length limitation: 330mm
