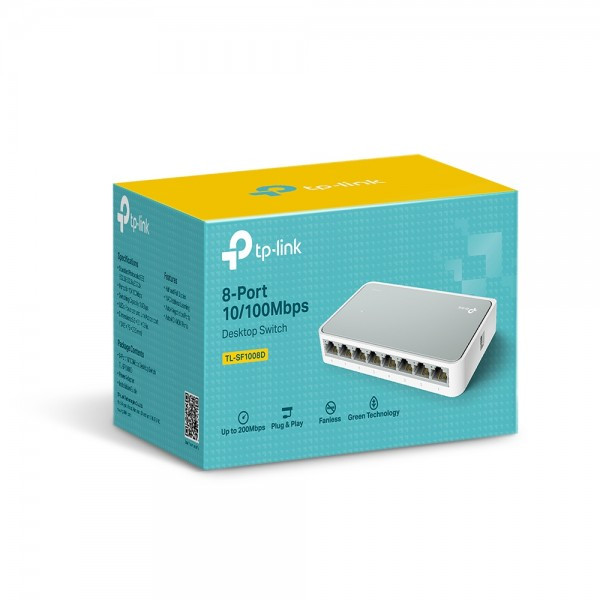

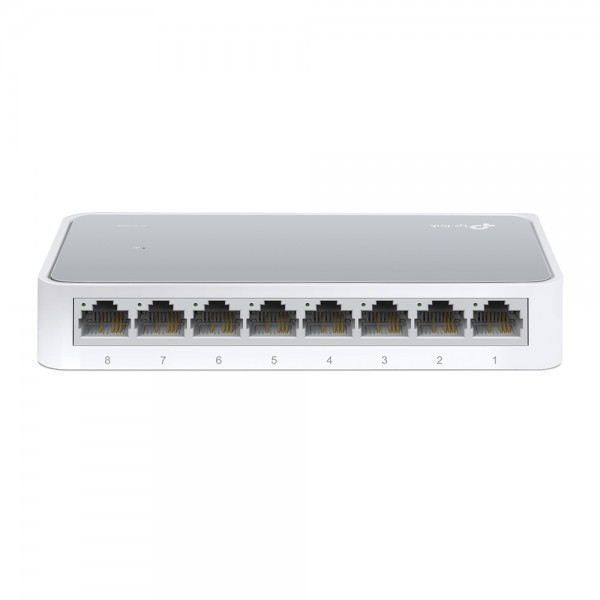

LAN Switch TP-LINK TL-SF1008D 10100 8port
- Proizvod iz grupe: Switch uredjaji
- Proizvođač: TP-Link
Standards and Protocols
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
1.6Gbps
MAC Address Table
1k
Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method
Store-and-Forward
Ports
8 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
LED Indicators
Power, Link/Act (1, 2, 3, 4, 5)
Safety & Emission
FCC, CE
Dimensions (W*D*H)
5.5*3.4*1.1 in. (140*87*27.5 mm)
Environment
Operating Temperature: 0?40? (32104)
Storage Temperature: -40?70? (-40158)
Operating Humidity: 10%90% non-condensing
Storage Humidity: 5%90% non-condensing
Power
External Power Adapter
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
1.6Gbps
MAC Address Table
1k
Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method
Store-and-Forward
Ports
8 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
LED Indicators
Power, Link/Act (1, 2, 3, 4, 5)
Safety & Emission
FCC, CE
Dimensions (W*D*H)
5.5*3.4*1.1 in. (140*87*27.5 mm)
Environment
Operating Temperature: 0?40? (32104)
Storage Temperature: -40?70? (-40158)
Operating Humidity: 10%90% non-condensing
Storage Humidity: 5%90% non-condensing
Power
External Power Adapter
Standards and Protocols
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
1.6Gbps
MAC Address Table
1k
Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method
Store-and-Forward
Ports
8 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
LED Indicators
Power, Link/Act (1, 2, 3, 4, 5)
Safety & Emission
FCC, CE
Dimensions (W*D*H)
5.5*3.4*1.1 in. (140*87*27.5 mm)
Environment
Operating Temperature: 0?40? (32104)
Storage Temperature: -40?70? (-40158)
Operating Humidity: 10%90% non-condensing
Storage Humidity: 5%90% non-condensing
Power
External Power Adapter
