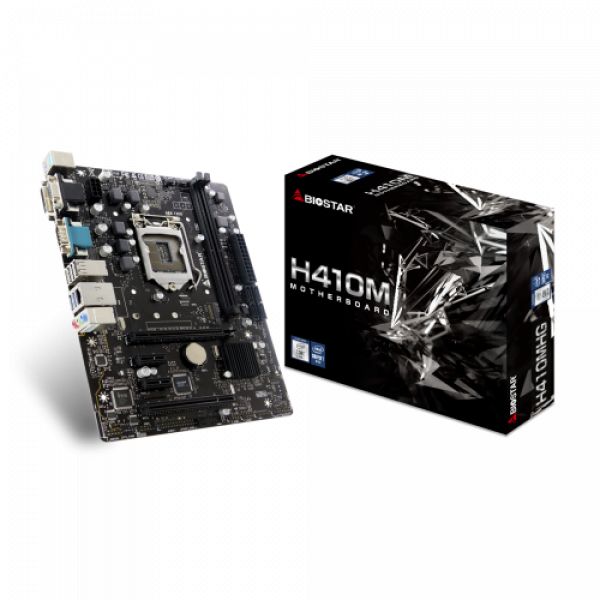

Matična ploča 1200 Biostar H410MHG VGA/HDMI/DVI/M.2/RS232
Šifra: 122366
- Proizvod iz grupe: Matične ploče
- Proizvođač: Biostar
Dostupno:
Maloprodajna cena:
12.114,00 rsd.
cena za odloženo plaćanje i kupovinu na rate
WebCena:
10.095,00 rsd.
cena za web porudžbine i avansno plaćanje
Popust:
2.019,00 rsd.
- Tip procesora
- Intel
- Podnožje
- Intel® 1200
- Čipset
- Intel® H410
- Format ploče
- Micro ATX
- Podržani procesori
- Support for 10th Generation Intel® Core™ i9 processorsIntel® Core™ i7 processorsIntel® Core™ i5 processorsIntel® Core™ i3 processorsIntel® Pentium® processorsIntel® Celeron® processors in the LGA1200 package
- Podržana memorija
- DDR4
- Memorija
- Supports Dual Channel DDR4 1866 2133 2400 2666 2800 2933 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 481632GB DDR4 module * Please refer to Memory Support List for more information. Core (i9i7) support DDR4 up to 2933 MHz; Core (i5i3), Pentium and Celeron support DDR4 up to 2666 MHz.
- Integrisana grafička karta
- By CPU model Supports DX12 Supports HDCP
- Storage
- Total supports 1 x M.2 slots and 4 x SATA III(6Gbs) ports 1 x PCIe-M2 socket , with M key, type 224222602280 storage devices support SATA & PCIE 3.0 x 2 mode 4 x SATA III (6Gbs) * When using SATA SSD module on M.2(PCIe-M2)slot, the SATA_1 connector will be disabled.
- Mrežna karta
- RTL8111H 10 100 1000 Mbs auto negotiation, Half Full duplex capability
- Zvučna karta
- ALC887 7.1 Channels, High Definition Audio
- USB
- 4 x USB 3.2(Gen1) ports (2 on rear IOs and 2 via internal headers) 8 x USB 2.0 ports (4 on rear IOs and 4 via internal headers)
- Konektori na zadnjoj strani
- 1 x PS2 Keyboard 1 x PS2 Mouse 1 x DVI-D Port 1 x VGA Port 1 x HDMI Port 1 x COM Port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack
- Interni konektori
- 4 x SATA III Connectors (6Gbs) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 2 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Printer Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Instruction Header
- Razno
- {"url":"https:\\www.biostar.com.tw\app\en\mb\introduction.php?S_ID=983#overview","title":"Link proizvo\u0111a\u010da","target":"_blank"}
