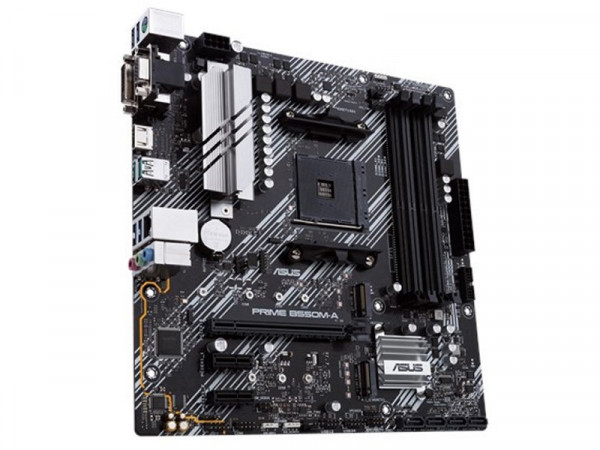

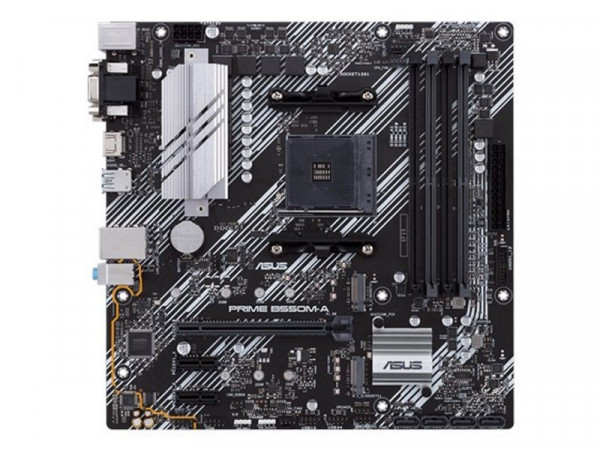

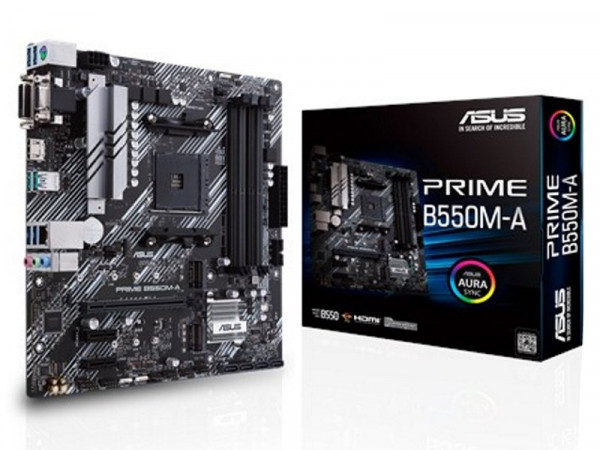

MBO AM4 ASUS PRIME B550M-A

Šifra: 111244

Proizvod iz grupe: Matične ploče
Proizvođač: ASUS

Dostupno:

Maloprodajna cena: 14.820,00 rsd. cena za odloženo plaćanje i kupovinu na rate

WebCena: 12.350,00 rsd. cena za web porudžbine i avansno plaćanje

Popust: 2.470,00 rsd.

Model	PRIME B550M-A
Procesorsko podnožje (Socket)	AMD Socket AM4
Skup čipova (Chipset)	AMD B550
Podrška za procesore	Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
Tip memorije (RAM)	DDR4
Broj memorijskih slotova	4x 288-Pin DDR4
Podrška za memorije	3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Podrška za grafiku - portovi	1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)
Slotovi za proširenja	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1
M.2 portovi	2x M.2 Socket 3
Čuvanje podataka - portovi	Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
U.2 portovi	nema
SATA Express portovi	nema
SATA portovi	4x SATA 6Gb/s
LAN	Realtek RTL8111H 1Gb Ethernet
Zvuk (Audio)	Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
USB portovi	Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)

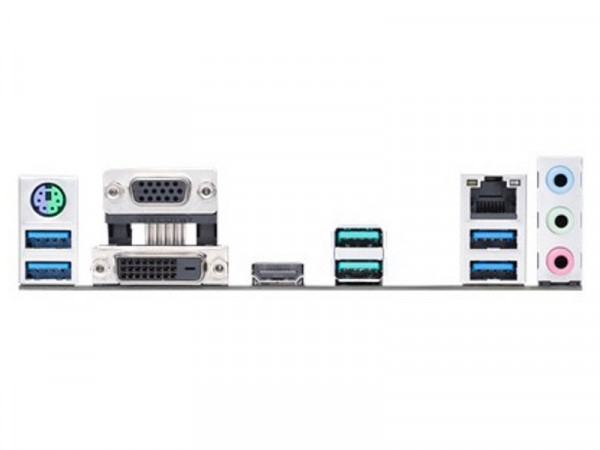

Konektori na zadnjoj strani	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s)
Unutrašnji konektori	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
Posebne mogućnosti	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header ASUS Lighting Control
Operativni sistem	Windows® 10
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Format	Micro ATX
Dodatna oprema	I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD User manual 1 x M.2 SSD screw package(s)
Link ka proizvodjacu	https://www.asus.com/Motherboards/PRIME-B550M-A/overview/

Reklamacioni period	36 meseci

Socket
AM4
CPU
AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9
Chipset (N)
AMD B550
BUS [MHz]
1000
Memorija
DDR4
Broj slotova
4
Max. memorije [GB]
128
Takt memorije [MHz]
2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133
AGP 4x8x
na
PCI
na
PCIe 3.0 x16
1
PCIe x16
na
PCIe x8
na
PCIe x4
na
PCIe x1
2
PCI-X
na
PATA
na
SATA
na
SATA 6Gbs
4
RAID polje
0, 1
Audio
8-kanalni audio
Mreža
1x 101001000 Ethernet
Parallel
na
Serial
na
PS2 mouse
na
PS2 keyboard
1
D-sub
1
DVI
1
Display port
na
HDMI
1
RJ45
1
USB 2.0
0
USB 3.0
0
SPDIF Out
na
4-pin ATX 12V Power
na
8-pin ATX 12V Power
Y
20-pin ATX Power
na
24-pin ATX Power
Y
Front panel audio
Y
Chasis Intrusion
na
CD Audio In
na
Chasis Fan Power
2
CPU Fan Power
2
Format ploče
mATX
WLAN connector
na
Podrška za integrisani grafičk
Y
SATA Express
na
M.2
2
U.2
na
USB 3.1
0
USB 3.1
0
USB 3.2
6

Model	PRIME B550M-A
Procesorsko podnožje (Socket)	AMD Socket AM4
Skup čipova (Chipset)	AMD B550
Podrška za procesore	Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
Tip memorije (RAM)	DDR4
Broj memorijskih slotova	4x 288-Pin DDR4
Podrška za memorije	3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Podrška za grafiku - portovi	1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)
Slotovi za proširenja	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1
M.2 portovi	2x M.2 Socket 3
Čuvanje podataka - portovi	Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
U.2 portovi	nema
SATA Express portovi	nema
SATA portovi	4x SATA 6Gb/s
LAN	Realtek RTL8111H 1Gb Ethernet
Zvuk (Audio)	Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
USB portovi	Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Konektori na zadnjoj strani	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s)
Unutrašnji konektori	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
Posebne mogućnosti	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header ASUS Lighting Control
Operativni sistem	Windows® 10
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Format	Micro ATX
Dodatna oprema	I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD User manual 1 x M.2 SSD screw package(s)
Link ka proizvodjacu	https://www.asus.com/Motherboards/PRIME-B550M-A/overview/
