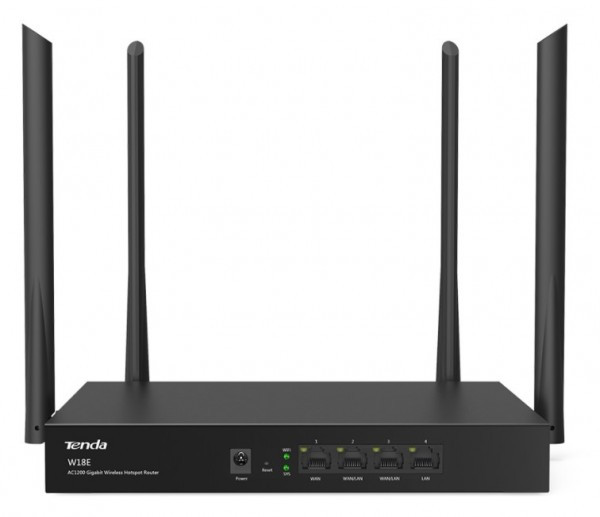

Smart Bandwidth Control W18E features with smart bandwidth management. It will adjust each user's download and upload bandwidth automatically according to all users bandwidth usage to avoid bandwidth insufficient. Multi WAN Load Balance W18E supports 3 WAN ports. It can realize bandwidth averaging between two WAN ports base IP Group. Also it reserve the possibility of bandwidth expansion in the future. PPTP/L2TP/IPSec Server W18E supports multiple VPN protocols including IPsec, PPTP and L2TP in Client/Server mode. It is easily to setup a secure data link between branch and headquater through LAN-to-LAN/Client-to-LAN mode. RAM 128MB Flash 8MB Interface 4*GE(1~3 WAN/ 1~3 LAN) Maximum Power Consumption 12W Button 1* Reset button Power 12V 1A Dimension(LxWxH) 220*135*30mm Wireless: Frequency 2.4GHz5GHz Wireless Speed 300+867Mbps Software: Maximum user capacity 80 Maximum Wifi user capacity 50 Internet Connection Type PPPoE/DHCP/Static IP/Russian L2TP/India (PPPoE supports server name customization) Authrization Service Captive Portal/Facebook Authentication Captive Portal 50 Portal Accounts Customize E-bulletin Backbound Bandwidth Smart Bandwith Control Manual Definition Internet Access Control IP/mac/URL Filter VPN Protocal PPTP/L2TP/IPSEC Port Forwarding: Port Forwarding DMZ Security Setting IP-MAC Binding ARP Attack Protection DDNS no-ip/dyndns UPNP Support Firmware Upgrade Local/online Upgrade System Tool: Schedule Reboot Restore or Backup Configuration Network Status View Traffic Statistics Network structure topology Others Package Contents Wireless Router*1 Power Adapter *1 Install Guide*1 Web Login Address tendawifi.com or 192.168.0.252 OperatingTemperature 0? ~ 40? Storage Temperature -40? ~ 70? Operating Humidity 10% ~ 90% RH non-condensing Storage Humidity 5% ~ 90%RH non-condensing Certificates CE/FCC/RoHS
